alarm installation ultimate guide safety essentials

Pre-Installation Assessment: Site Evaluation and Risk Mitigation

Site Evaluation Checklist for Sensor Placement

Environmental Factors Affecting Alarm System Performance

Key Principle: Environmental resilience in alarm systems relies on hardware selection, shielding, and adaptive algorithms to compensate for external variables.

• Extreme Temperatures

  Cold climates (< -10°C) can cause sensor drift or battery failure, while high temperatures (> 50°C) may reduce detector sensitivity or damage wiring.

  • Solutions:
    • Use heated or insulated enclosures for exterior sensors (e.g., NEMA 4X-rated boxes).
    • Select sensors with wide-temperature operating ranges (e.g., -40°C to +70°C).
    • Deploy backup power (e.g., lithium-ion batteries with temperature compensation).
• Humidity and Moisture

  High humidity (> 80%) or direct exposure to water (e.g., roof leaks, flooding) corrodes contacts, short-circuits wiring, and triggers false alarms in flood sensors.

  • Solutions:
    • Install IP65/67-rated sensors and junction boxes in basements or near plumbing.
    • Use desiccant packs or silica gel in control panels to absorb moisture.
    • Elevate wiring and sensors above flood-prone areas (minimum 18 inches).
• Electromagnetic Interference (EMI)

  Sources like microwave ovens, wireless routers, or industrial machinery can disrupt wireless signals (e.g., RF-based sensors or keypads) or induce noise in wired systems.

  • Solutions:
    • Use shielded cables (e.g., twisted-pair or coaxial) for wired sensors.
    • Position wireless devices away from EMI sources or use frequency-hopping spread spectrum (FHSS) technology.
    • Ground metal enclosures and install EMI filters for control panels.



  Step-by-Step Installation Procedures: Wiring, Mounting, and Configuration

  Proper installation of a wired alarm system ensures reliability, security, and compliance with electrical and safety standards. This section provides a structured, detail-oriented guide covering wiring configurations, sensor mounting, control panel setup, and third-party device integration. Adherence to manufacturer specifications and local electrical codes is critical to prevent system failures, electrical hazards, or voided warranties.


  Wiring Procedures for Wired Alarm Systems

  Wiring forms the backbone of a wired alarm system, connecting sensors, control panels, and power sources while adhering to voltage, current, and safety requirements. Incorrect wiring can lead to false alarms, system malfunctions, or electrical fires. Below is a step-by-step procedure for wiring, including tool requirements, wire gauge specifications, and junction box configurations.

  Tools and Materials Required


  • Wire strippers and crimpers
  • Voltage tester (non-contact type)
  • Screwdriver set (Phillips and flathead)
  • Wire nuts or butt connectors
  • Electrical tape
  • Junction boxes (UL-listed, appropriate for system load)
  • Wire gauge appropriate for system voltage (typically 18-22 AWG for low-voltage systems)
  • Power drill (for mounting junction boxes)
  • Label maker or permanent marker

  Wire Gauge Specifications
  Wire gauge selection depends on the system voltage and distance between components. For most low-voltage alarm systems (typically 12V–24V DC):


  • 18 AWG: Maximum run of 150 feet (for sensors and low-power devices).
  • 20 AWG: Maximum run of 100 feet (common for most sensors and intermediate wiring).
  • 22 AWG: Maximum run of 50 feet (for short distances or high-resistance sensors).
  >

  > Safety Warning: Always verify wire gauge compatibility with the control panel and sensor datasheets. Exceeding maximum run lengths without voltage drop compensation may cause sensor malfunctions or false triggers.
  >

  Step-by-Step Wiring Process

  1. Disconnect Power and Verify Safety


  • Turn off power at the circuit breaker and test for voltage using a non-contact tester.
  • Label all wires and cables before disconnecting to avoid confusion during reconnection.
  >

  > Critical Safety Note: Disconnect power before wiring. Electrical shocks or short circuits can damage equipment or cause injury.
  >

  2. Plan the Wiring Layout

  • Sketch a wiring diagram showing the control panel, sensors, junction boxes, and power source locations.
  • Use star wiring (all devices connected to a central junction box) for reliability or daisy-chaining (sensors connected in series) for simplicity in small systems.
  • Ensure junction boxes are accessible and mounted within 3 feet of the ceiling for easy maintenance.

  3. Run Wires from the Control Panel


  • Use low-voltage cable (e.g., CL2 or CL3) to prevent interference and protect against environmental damage.
  • Route wires through conduit or cable trays where exposed to prevent physical damage.
  • For outdoor installations, use waterproof junction boxes and UV-resistant cables.

  4. Connect Sensors to the Wiring Loop


  • Follow the manufacturer’s wiring diagram for sensor polarity (typically + to +, – to –).
  • Use wire nuts to secure connections and wrap with electrical tape for insulation.
  • For normally closed (NC) sensors (e.g., door contacts), ensure proper wiring to avoid false alarms when open.

  5. Configure Junction Boxes


  • Install junction boxes at intermediate points (e.g., every 50 feet for 20 AWG wire) to split wiring loops.
  • Use pigtail connections to combine multiple wires into a single terminal.
  >

  > Best Practice: Leave 6 inches of slack in junction boxes for future modifications.
  >

  6. Grounding and Power Supply

  • Connect the system ground to a dedicated ground rod or building ground bus per local codes.
  • Use a transformer (if required) to step down voltage from 120V AC to 12V/24V DC.
  • Ensure the power supply meets the total current draw of all connected devices (e.g., 500mA for a typical 24V system with 10 sensors).

  7. Test Continuity and Voltage Drop


  • Use a multimeter to verify continuity across all wires.
  • Measure voltage drop (should not exceed 10% of the supply voltage over the wire length).
  • Perform a system loop test using the control panel’s diagnostic tools.

  Mounting and Calibrating Sensors: Motion Detectors, Door Contacts, and Glass-Break Detectors

  Proper sensor placement minimizes false alarms while maximizing detection coverage. Each sensor type requires specific mounting heights, angles, and environmental considerations. Below are detailed guidelines with ASCII diagrams for clarity.

  General Mounting Principles


  • Avoid placing sensors near HVAC vents, drafts, or direct sunlight, which can trigger motion detectors.
  • Mount sensors out of reach (typically 5–6 feet high) to deter tampering.
  • Ensure line-of-sight for motion detectors and unobstructed sensor fields for door/glass-break detectors.
  >

  > Environmental Consideration: Motion detectors should not be installed in areas with high humidity, extreme temperatures, or dust accumulation, as these can degrade performance.
  >

  Mounting Motion Detectors

  Motion detectors use passive infrared (PIR) or microwave technology to detect movement. Optimal placement depends on the sensor’s detection range (typically 30–60 feet) and field-of-view (FOV, usually 90°–120°).

  Ideal Mounting Parameters


  • Height: 8–10 feet from the floor (adjustable based on ceiling height; lower for basements).
  • Angle: 45° downward to cover the largest area without detecting small animals or drafts.
  • Distance from Walls: 3–6 feet to avoid edge effects (where detection sensitivity drops near walls).
  • Avoid: Corners, doorways, or areas with frequent false triggers (e.g., pet paths, ceiling fans).

  ASCII Diagram: Motion Detector Placement

  [Wall]-----------------[Wall]
  | |
  | |
  ---[Sensor]--- |
  / \ |
  45° 90° FOV |
  |
  [Detection Zone]

  >

  > Calibration Tip: Use the sensor’s test mode (if available) to adjust sensitivity by walking through the detection zone. If the sensor triggers too easily, reduce sensitivity in the control panel settings.
  >

  Mounting Door and Window Contacts

  Door/window contacts use magnetic switches to detect openings. Proper installation ensures instant alarm triggering without false activations.

  Ideal Mounting Parameters


  • Door Contacts:
  • Sensor: Mount 1–2 inches from the top or bottom of the door frame.
  • Magnet: Align flush with the sensor (gap should not exceed ¼ inch).
  • Avoid: Areas with metal objects or magnetic interference (e.g., near speakers or tools).
  • Window Contacts:
  • Sensor: Place on the movable sash (not the frame) to detect opening.
  • Magnet: Secure to the fixed frame with a non-metallic screw (to prevent short circuits).

  ASCII Diagram: Door Contact Installation

  [Door Frame]
  |
  |-------[Sensor] (Top/Bottom)
  |
  [Door]-------[Magnet] (Aligned)

  >

  > Installation Warning: Do not use screws with washers that could compress the contact mechanism, leading to false alarms.
  >

  Mounting Glass-Break Detectors

  Glass-break detectors use acoustic sensors to detect the high-frequency vibrations of breaking glass. Placement is critical to avoid missing alarms or false triggers.

  Ideal Mounting Parameters


  • Height: 6–8 feet from the floor (centered on the largest glass panel).
  • Distance from Glass: 1–2 feet (too close reduces sensitivity; too far misses high-pitched sounds).
  • Avoid: Mounting near HVAC units, speakers, or appliances that generate similar frequencies.
  • Orientation: Parallel to the glass surface (not at an angle).

  ASCII Diagram: Glass-Break Detector Placement

  [Ceiling/Wall]

  Testing and Troubleshooting: Ensuring System Reliability

  A robust alarm system requires rigorous validation to confirm its operational integrity under real-world conditions. Testing protocols verify sensor accuracy, communication stability, and backup power functionality, while troubleshooting methodologies address failures systematically. This section outlines structured testing procedures, diagnostic guides for common issues, and performance logging techniques to maintain compliance and minimize downtime.


  Structured Testing Protocol for Alarm System Validation

  System reliability depends on consistent verification of core components through standardized tests. Below is a checklist formatted for field technicians, ensuring all critical functions are validated before deployment.


  Test Type	Pass/Fail Criteria	Tools Needed	Corrective Actions
  Sensor Responsiveness Test	All sensors (motion, door/window contacts, glass break) trigger within 2–5 seconds of activation; no false triggers under normal conditions.	Test objects (e.g., reflective tape for motion sensors), multimeter, alarm keypad.	Recalibrate sensor alignment (e.g., adjust motion sensor angle to 15°–30° from floor). Replace faulty sensors or clean obstructed lenses. Check for electromagnetic interference (EMI) from nearby devices (e.g., microwaves, Wi-Fi routers).
  Communication Link Test	System transmits alerts to monitoring center within 5 seconds; no dropped signals during simulated interference (e.g., signal jamming near cell towers).	Signal strength meter, monitoring center dashboard, portable Wi-Fi jammer (for simulation).	Upgrade to dual-path communication (cellular + IP) if drops persist. Relocate router or use a mesh network to eliminate dead zones. Verify firewall settings allow outbound traffic on required ports (e.g., 5616 for Contact ID).
  Backup Power Test	System remains operational for ≥24 hours on battery backup; voltage drop ≤10% during load test.	Multimeter, backup power unit (UPS), load tester.	Replace degraded batteries (lithium-ion or sealed lead-acid) every 3–5 years. Inspect wiring for corrosion or loose connections. Upgrade UPS capacity if system draws >50% of rated power.
  User Interface Test	Keypad/panel responds to commands (arm/disarm, bypass) within 1 second; display shows accurate status (e.g., "Armed Stay").	Alarm keypad, test codes, user manual.	Reset panel firmware to latest version. Replace damaged keypads or recalibrate touchscreens. Check for RF interference from nearby devices (e.g., Bluetooth speakers).
  False Alarm Rate Validation	≤0.5 false alarms per month (industry benchmark); no repeated triggers from same sensor.	Alarm logs, monitoring center reports, environmental sensors (e.g., temperature/humidity).	Adjust sensitivity settings (e.g., reduce motion sensor range by 10–20%). Install pet-friendly sensors or exclude zones for high-traffic areas. Review environmental factors (e.g., drafts near door contacts).

  Note: Document all test results in the system’s audit log, including timestamps, environmental conditions, and technician notes. Compliance with NFPA 72 (National Fire Alarm Code) requires retention of these records for ≥1 year.


  Diagnostic Guide for Common Alarm Failures

  Alarm system malfunctions often stem from environmental factors, hardware degradation, or misconfiguration. Below are prioritized solutions for frequent issues, ranked by urgency (critical failures first).

  Root Causes and Solutions by Severity

  1. Critical Failures (Immediate Action Required)


  • Issue: System fails to communicate with monitoring center.
  Root Causes:

  • Cellular signal loss (e.g., poor tower coverage, SIM card failure).
  • IP network outage (e.g., ISP downtime, firewall blocking ports).
  Solutions:

  • Urgency 1: Switch to secondary communication path (e.g., from IP to cellular).
  • Urgency 2: Replace faulty SIM card or relocate router to improve signal.
  • Urgency 3: Verify ISP service status or configure failover to a secondary ISP.

  - Issue: Backup power fails during primary outage.
  Root Causes:


  • Dead or discharged batteries.
  • Faulty UPS or wiring connections.
  Solutions:

  • Urgency 1: Manually switch to backup power and replace batteries on-site.
  • Urgency 2: Test UPS load capacity under simulated outage conditions.
  • Urgency 3: Schedule professional inspection of wiring and grounding.

  2. High-Impact Failures (Resolve Within 24 Hours)


  • Issue: Repeated false alarms from a specific sensor.
  Root Causes:

  • Improper sensor alignment (e.g., motion sensor facing direct sunlight).
  • Environmental triggers (e.g., vibrating pipes near door contacts).
  Solutions:

  • Urgency 1: Physically relocate or shield the sensor (e.g., use a baffle for motion sensors).
  • Urgency 2: Adjust sensitivity settings via keypad or software.
  • Urgency 3: Install auxiliary sensors (e.g., vibration detectors) to cross-validate alerts.

  - Issue: Sensor fails to detect intrusions (e.g., door contact remains open undetected).
  Root Causes:


  • Mechanical failure (e.g., worn-out reed switch).
  • Obstruction (e.g., dirt, paint, or debris on contact surfaces).
  Solutions:

  • Urgency 1: Clean contacts with isopropyl alcohol and test functionality.
  • Urgency 2: Replace defective sensors (e.g., magnetic contacts with >10% gap tolerance).
  • Urgency 3: Upgrade to wireless sensors with tamper alerts.

  3. Low-Impact Issues (Scheduled Maintenance)


  • Issue: Keypad display flickers or responds slowly.
  Root Causes:

  • Loose connections or corroded terminals.
  • Software glitches (e.g., outdated firmware).
  Solutions:

  • Urgency 3: Reboot the panel and update firmware.
  • Urgency 4: Inspect wiring harness for damage or corrosion.

  - Issue: Low battery warnings appear prematurely (e.g., every 6 months).
  Root Causes:


  • Partial discharges from faulty batteries.
  • High ambient temperatures reducing battery life.
  Solutions:

  • Urgency 3: Replace batteries with low-temperature models (e.g., lithium-ion).
  • Urgency 4: Install a battery monitoring system to track voltage trends.

  Simulating Emergency Scenarios for Response Validation

  Field testing must include realistic emergency simulations to validate alert propagation and response times. Below are standardized procedures for fire, intrusion, and medical emergencies, incorporating bypass codes and test buttons.

  Procedure for Emergency Scenario Testing
  1. Preparation:


  • Obtain bypass codes for sensors to be tested (e.g., disable a motion sensor in a hallway).
  • Ensure the monitoring center is notified of the test in advance to avoid false dispatches.
  • Record baseline response times (e.g., from sensor trigger to alert receipt).

  2. Fire Alarm Test:

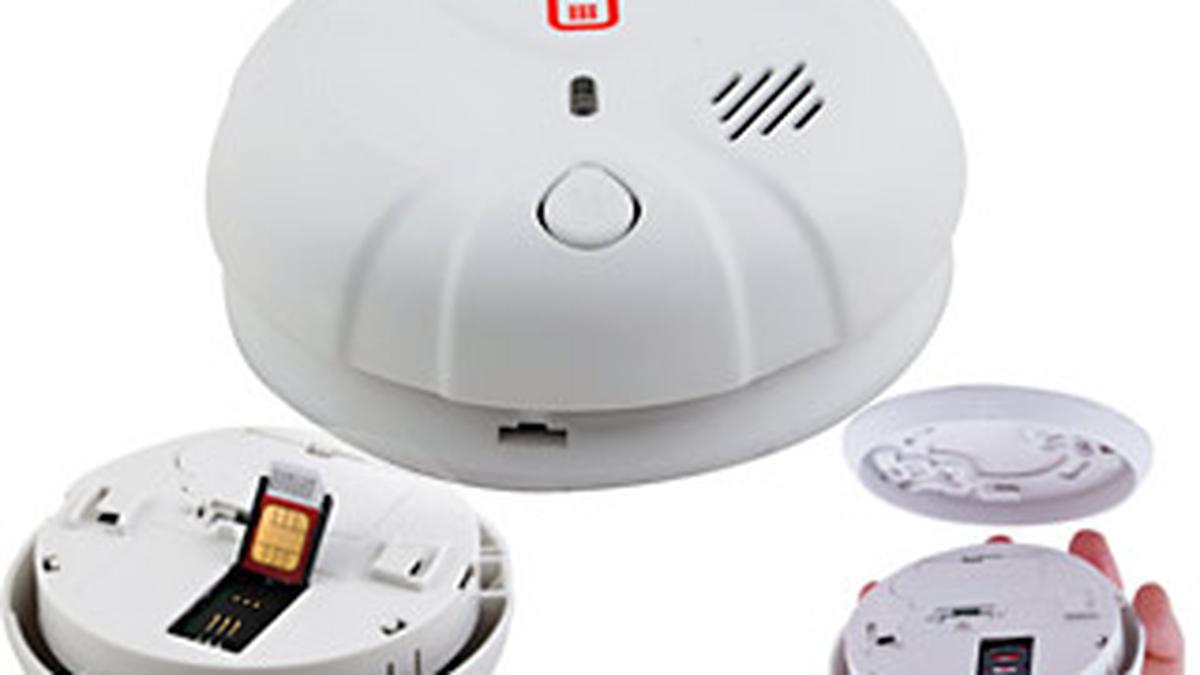

  • Method: Activate a smoke detector using a test button or introduce smoke (via a smoke pellet).
  • Validation Criteria:
  • Fire panel sounds local alarm within 3 seconds.
  • Signal reaches monitoring center within 5 seconds (verified via dashboard).
  • Backup power engages automatically.
  • Tools: Smoke pellet, stopwatch, monitoring center dashboard.

  3. Intrusion

  A well-executed alarm installation transcends basic threat detection; it embodies a proactive defense strategy that balances technology, human oversight, and regulatory adherence. Through systematic evaluation of site layouts, adherence to compliance standards, and continuous performance monitoring, professionals can transform alarm systems into indispensable assets for safety and operational resilience. The ultimate goal—minimizing response times, reducing false alarms, and ensuring seamless integration with emergency services—demands a fusion of technical expertise and strategic foresight. By leveraging the structured methodologies outlined here, stakeholders can achieve installations that are not only functional but also future-proof, capable of evolving with emerging threats and technological advancements.
